EFNOTE EST-5x Electronic Drum Kit w/Hardware

Calculate Shipping

Contact us for shipping quote - $0.00
Contact us on 03 5223 1724 for a shipping quote.

FREE Pick Up In Store - $0.00
Pick up from: 261 Moorabool Street, Geelong Vic 3220

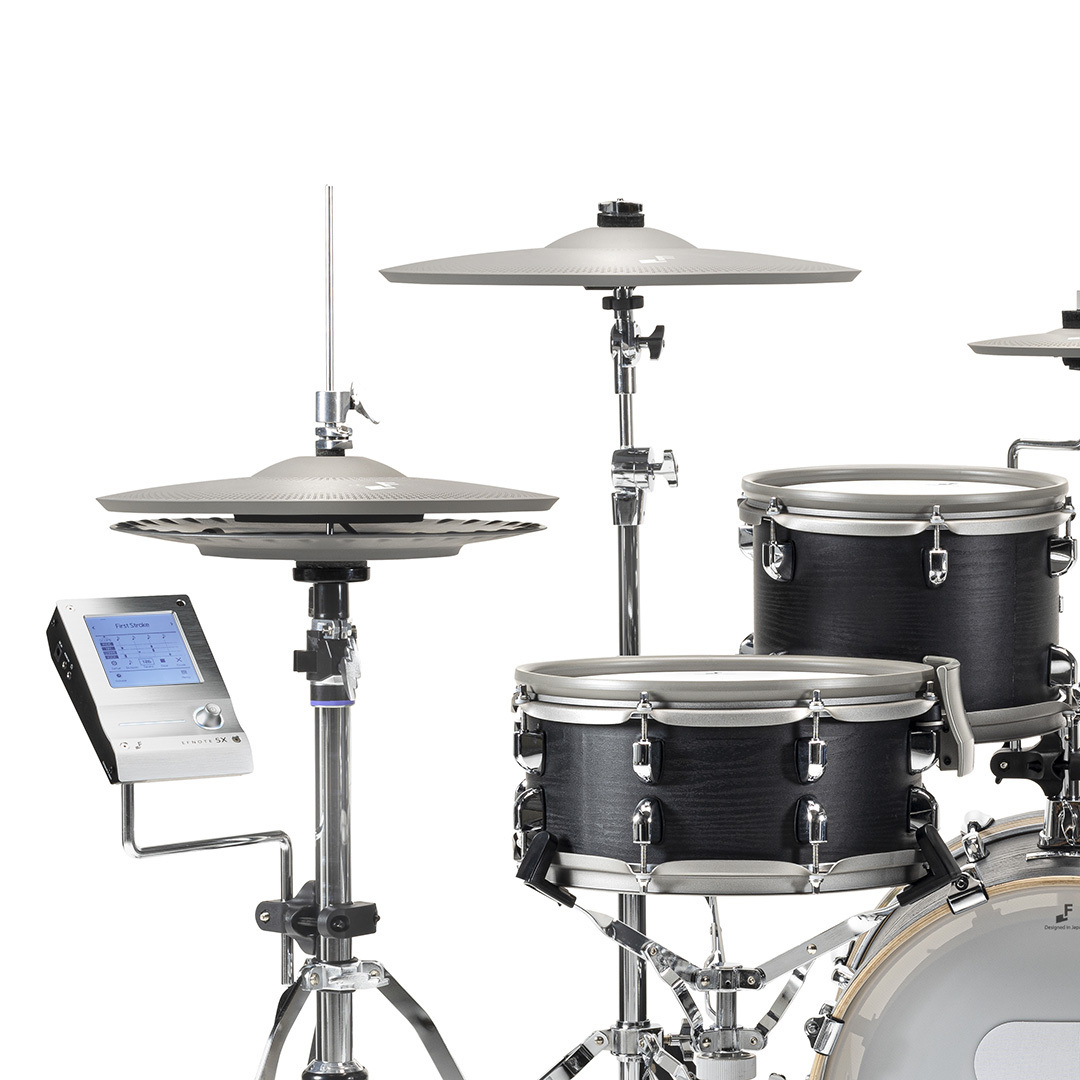

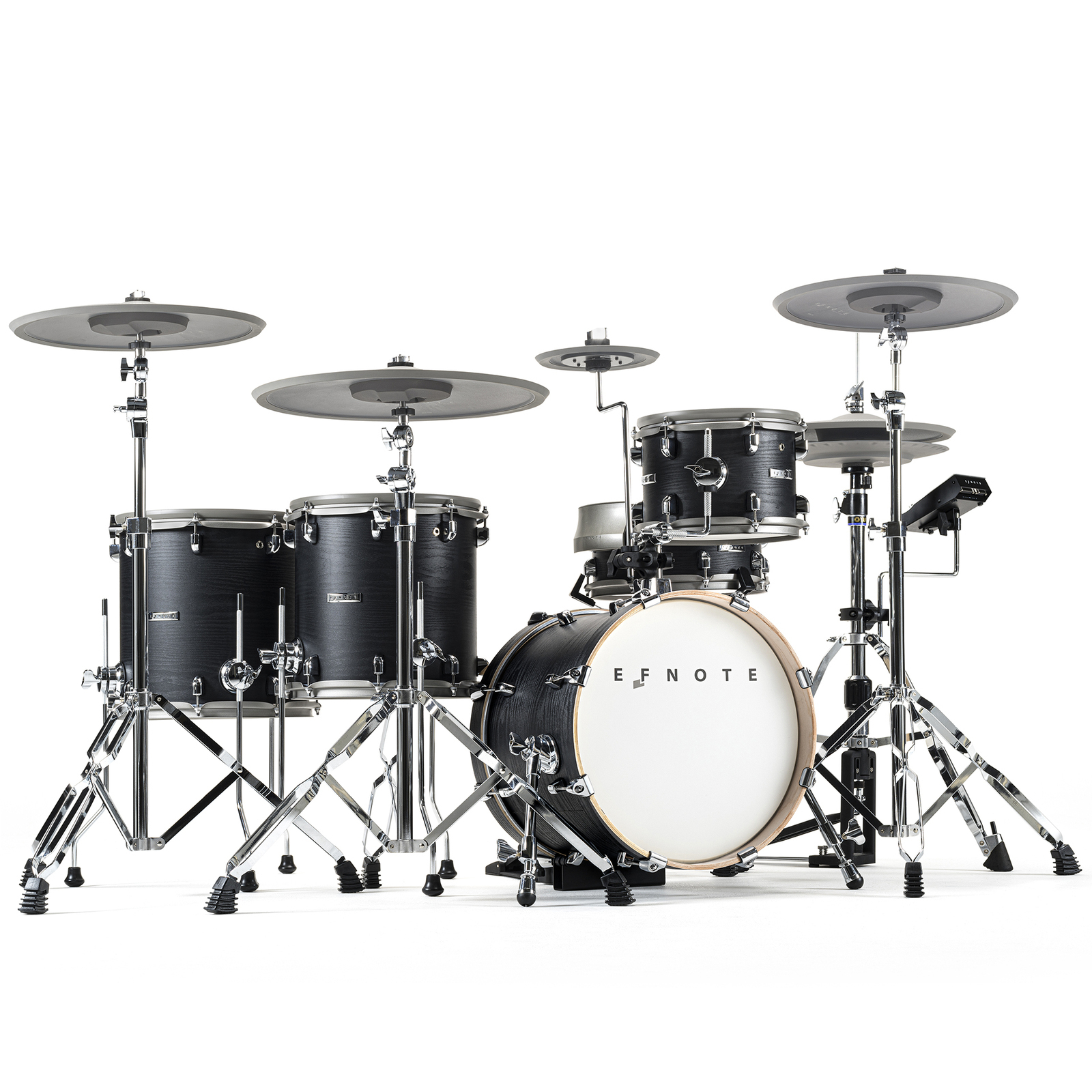

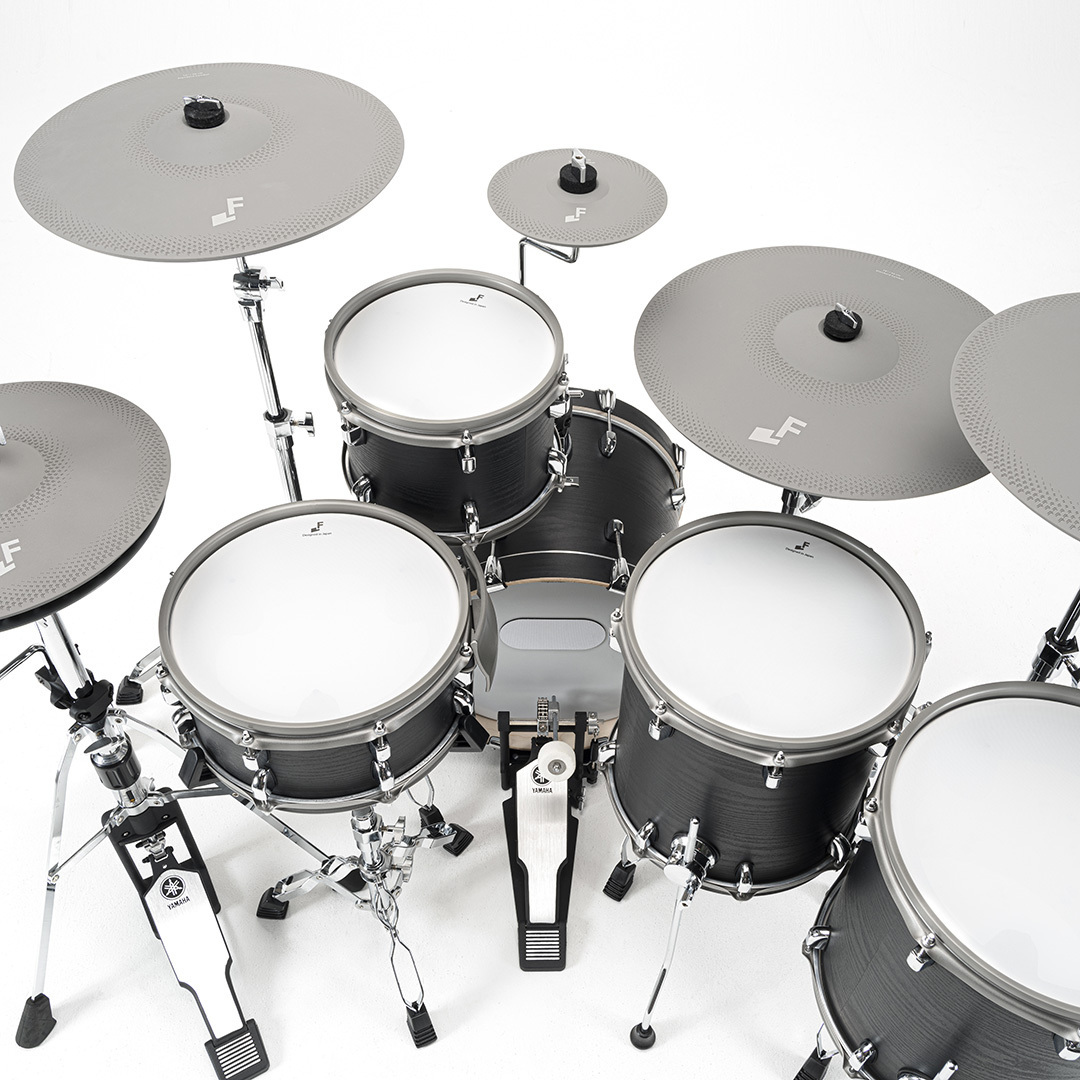

For electronic drum kits to stand out amongst the competitors, they need to tick all the right boxes and then more! EFNOTE is one such company that has employed some of the best electronic engineers and music instrument developers in the world and combined their many years of experience to create some of the most groundbreaking electronic drum kits for the professional market with one shared philosophy, Beauty + Quality + Originality. The EfNote EST 5x is a High-sensitivity 5-Piece Drum Pads & 5-Piece Cymbal. The snare drum has 9 sensors for a super high-resolution and hot-spotless playing experience. It has triggers on the rim for rim-shotting and features a separate adjustable side rim for your stick clicks. No switch operation is needed. It’s as easy as hitting it. Hi-Hats feature multiple optical sensors to capture 3d motions from the swinging hats capturing the expression of your playing. Each cymbal has 360 degrees of sensing and supports 360 degrees of choke. Adding to its excellence, all drums feature multiple sensors and a 2ply mesh drum. The kit includes a 16x12” Kick, 12x5” Snare, 10x7” Tom, 12x12” Floor Tom, 13x13” Floor Tom,14” Hit hats, 16” Crash, 18” Ride and an 8” Splash. The compact sound module packs a punch, with 17 (editable) pre-set kits, 83 User kits, stores up to 128 customized instruments, tuning and muffling edits, EQ and effects edits, USB 8ch output (Mac/Windows ASIO), Bluetooth and Audio Aux input, USB and MIDI 5 pin DIN in/out, Line outputs, On-board recording feature, metronome, set-list tempo configuration and that’s just the start! Includes KIT w/A+C+E, Deluxe bass drum pedal, drum throne, hi-hat stand and sticks. Connect to the EFNOTE Tools app to adjust your kit remotely, whether that’s quick swapping sounds or even downloading a whole new kit from the official Kit Library. Hardware differs from the product shown in photos. Oxygen Music is proud to have a variety of electronic drums and accessories including the EFNOTE EST-5x.

(200550)

Kick	EFD-K1612	Size: 16 x 12" Zone: Head Sensor: Multi Head: Double-layered mesh with beater patch Connector: Head (TRS Phones) Features:Bass drum riser, Wood hoop
Snare	EFD-S1250	Size: 12 x 5" Zone: Head / Rim / Side-Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim, Side-Rim (2x TRS Phones) Features: Birch shell, Colored hoop rubber, Side-Rim
Tom	EFD-T1070	Size: 10 x 7" Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber
Floor Tom	EFD-T1212	Size: 12 x 12" Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber
Hi-Hat	EFD-H14	General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used. EFNOTE 5 sound module does not support hi-hat cup zone. Size: 14" (Top/Bottom) Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) / Optical Connector: 6-pin Features: Multi-optical sensor, Tru-motion hi-hat, Weight simulation, Fine engraved surface
Crash	EFD-C16	Size: 16" Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface
Ride	EFD-C18	Size: 18" Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface
Splash	EFD-C08	Size: 8" Zone: Bow / Edge Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge (TRS Phones) Features: Weight simulation, Fine engraved surface

Sound Module: EFD-5

Trigger Interface	Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables. EFNOTE 5 uses the Crash 3 cable for the splash cymbal. 3-Zone: Snare, Crash 1/2*, Ride 2-Zone: Tom 1/2/3/4, HH, Crash 3 1-Zone: Kick
Audio / MIDI Interface	Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced) Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω) Audio Input: Stereo Mini-Phone (+2dBu Max) USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO) USB MIDI In/Out Bluetooth Audio Input Bluetooth MIDI (BLE) In/Out MIDI Out: 5-pin DIN
Drum Kits / Instruments	Preset Drum Kits: 17 (Editable) User Drum Kits: 83 Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters	Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Ambience Effect (8 Types) Pad Layer
Dimensions	172 (W) x 106 (D) x 47 (H) mm 700 g Excluding protrusions
Power	DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Tom Holder		1x Tom holder arm Geared L-rod tilter Knurled carbon steel rod L-rod diameter: φ11.5 mm (7/16") Tube diameter: φ22.2 mm (7/8") Height adjustment range: 700 -- 900 mm
Splash Cymbal Arm		1x Z-rod short 1x Z-rod long
Sound Module Arm		1x Sound module arm 1x Smartphone tray
Snare Drum Stand	EFD-SS5	For 12" to 14" diameter snare drums Geared basket tilter Double braced legs Tube diameter: φ19.1 mm (3/4") Height adjustment range: 500 -- 650 mm
Cymbal Stand	EFD-CS5	Boom cymbal arm Geared tilter Cable holder Middle tube diameter: φ19.1 mm (3/4") Boom length: 400 mm Height adjustment range: 800 -- 1,500 mm
