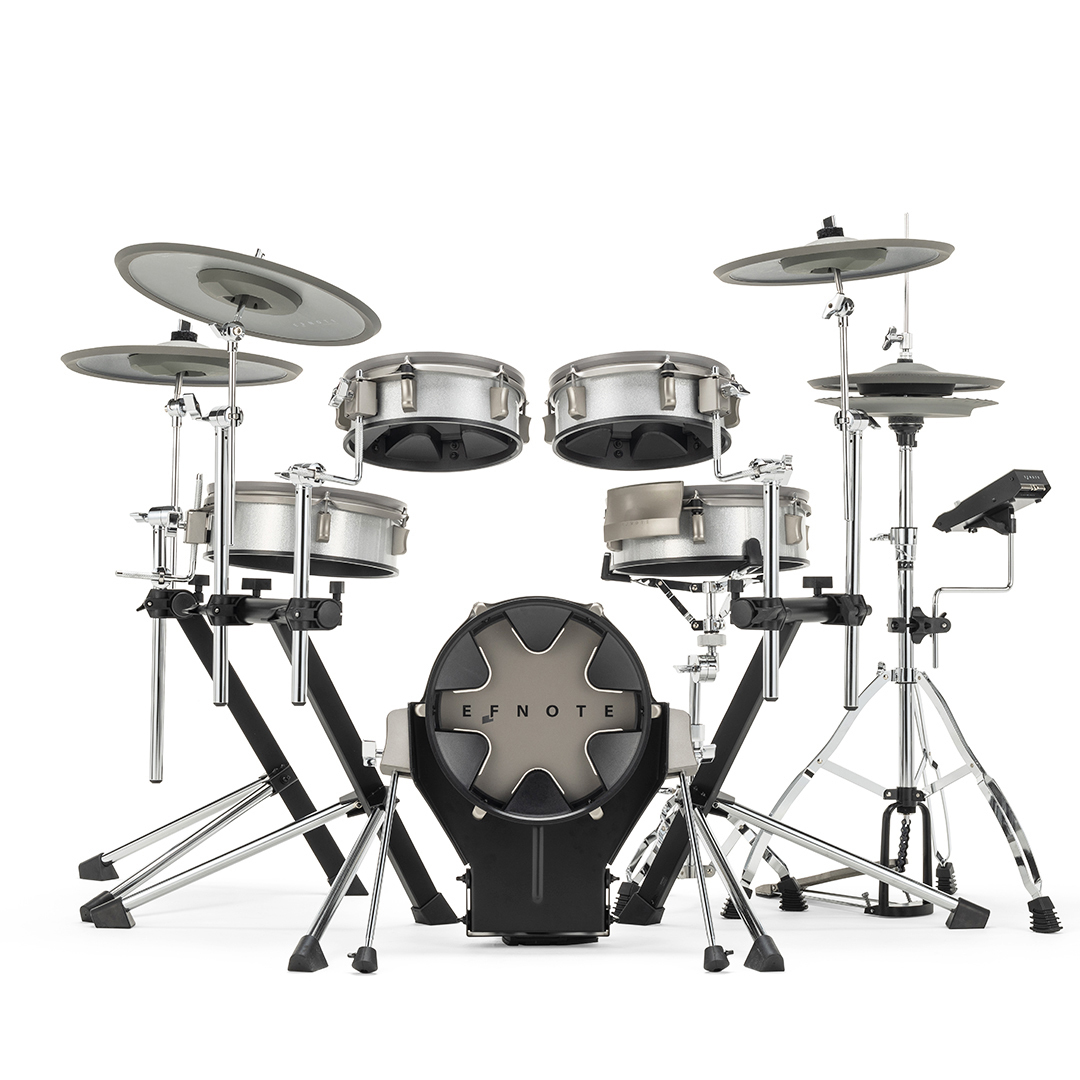

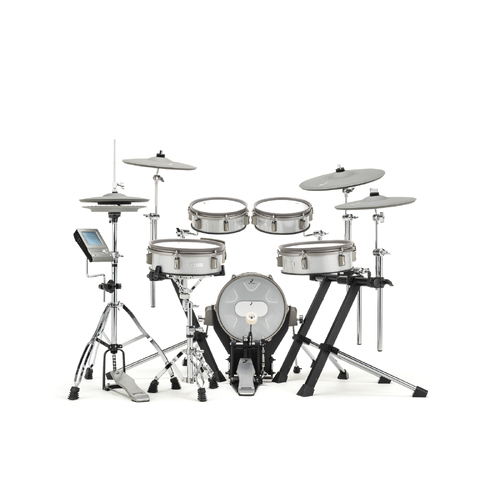

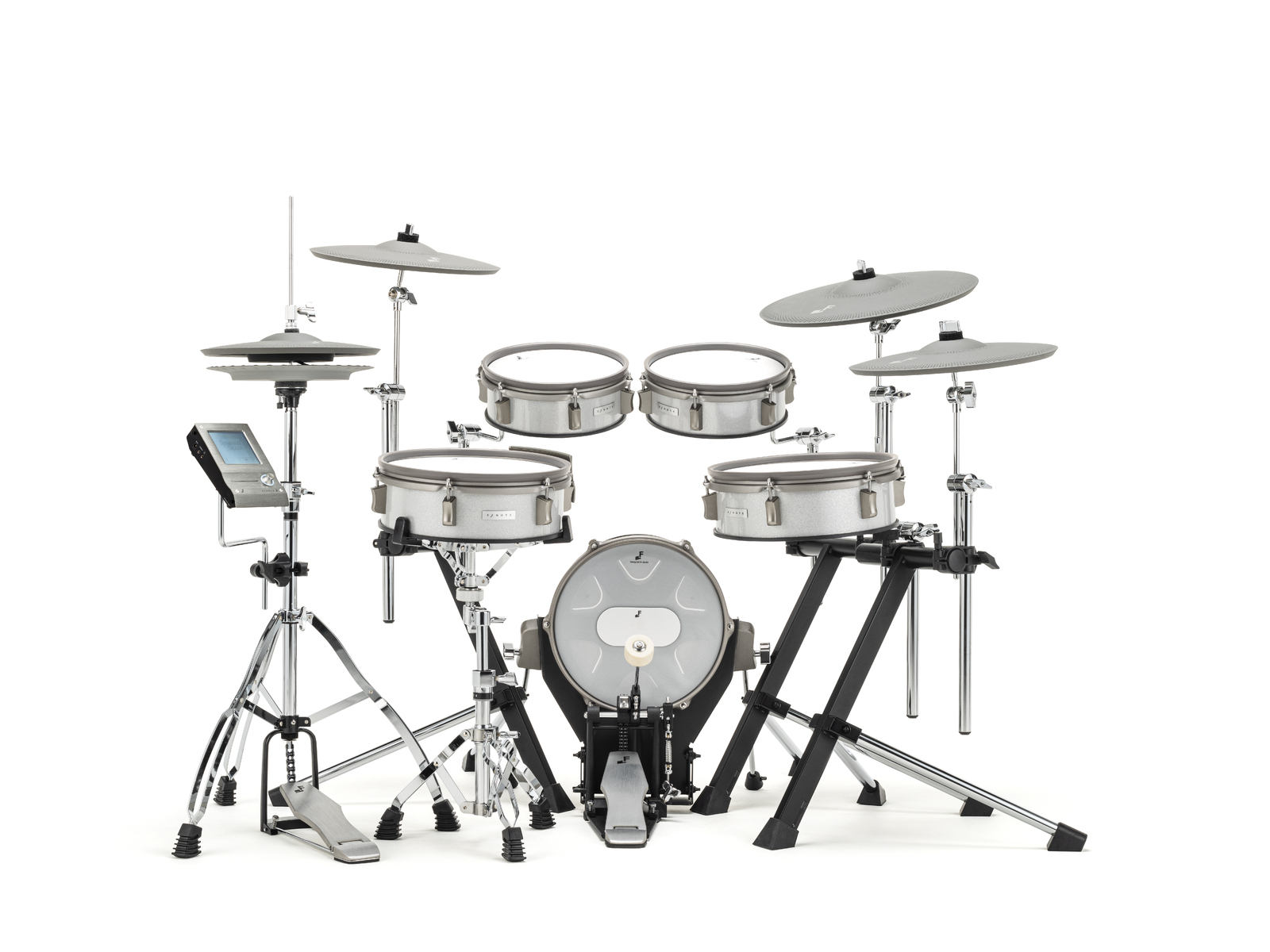

First introduced in 2020, the Efnote EST-3B electronic kit does more than just stand out in a crowd! EFNOTE is one such company that has employed some of best electronic engineers and music instrument developers in the world and combined their many years of experience to create some of the most ground breaking electronic drum kits for the professional market with one shared philosophy, Beauty + Quality + Originality. The EFNOTE 3B rises above all expectations and is built for performance and presentation. Equally at home in the studio or stage, the Efnote 3 features the best in real drum kit sampling technology and using TRU-ACO stereo sound technology, multi-sensored Monocoque open bottom shells to capture every drummers intricate playing style, stereo samples with minimal processed/uncompressed waveforms allowing maximum fidelity and dynamic response, 3 Zone snare, 2 Zone toms, 3 Zone Crashes & Ride cymbals, 2 Zone Hi Hats with ultra-realistic feel and smooth transitions from open and closed sounds. The compact sound module packs a punch, with 16 editable pre-set kits, 34 User kits, store up to 50 customized user instruments, Double Layered Mesh Drum snare/tom heads, tuning and muffling edits, EQ and effects edits, USB 8ch output (Mac/Windows ASIO), Bluetooth and Audio Aux input, USB and MIDI 5 pin DIN in/out, Line outputs, On-board recording feature, metronome, set-list tempo configuration and we've barely scratched the surface of this powerful module! The EFNOTE 3 is designed for the professional drummer wanting a stylish drumkit that blends perfectly on stage in sound and look, but equally at home in the recording studio when it comes to unlimited creativity. Featuring the unique (Lambda) Tripod 4 pce rack system, the four independant racks allow for easy set up, transport and adjustment. The EFNOTE 3B includes compact 8x3 Kick, Rubber rim Monocoque Open shell 12x4” Snare, 10x3.5” Toms 12x4” Floor Tom, 360 sensor round 12” Hi Hat, 360 sensor round 14” Crashes with choke, 360 sensor round 16” Ride with choke. Single bass pedal and stool included. Expanding upon the Efnote 3, the Efnote 3B upgrades the original Efnote 3, giving you an upgraded hi-hat, and bigger and better bass drum. Hardware is NOT DW brand as shown in some photos. Finished in a White/Silver Sparkle. Oxygen Music proudly stock a wide selection of quality electronic drum kits and accessories, including the EFNOTE 3 Electronic Drum Kit EST-3B.

(200508)

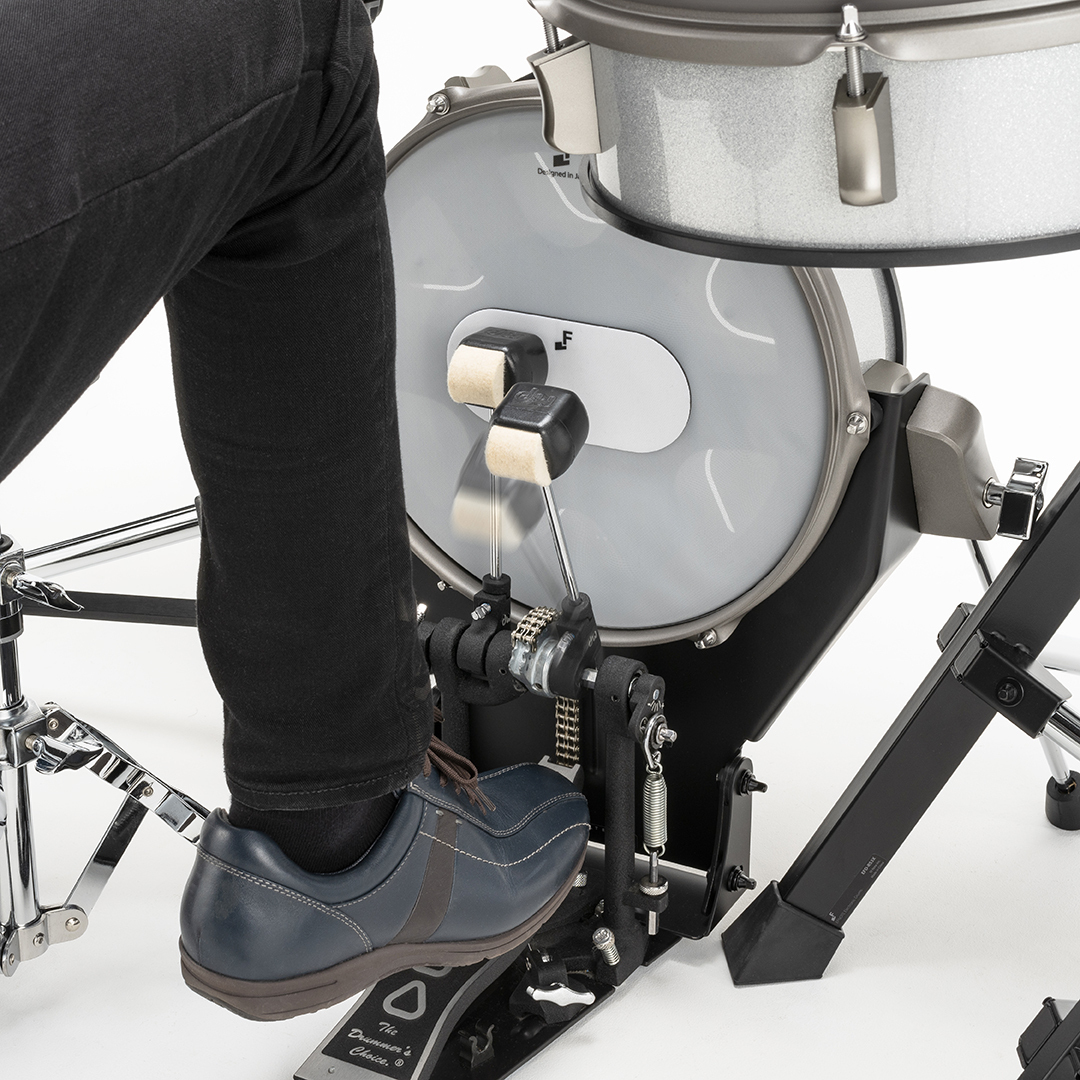

Kick	EFD-K1612	Size: 16 x 12" Zone: Head Sensor: Multi Head: Double-layered mesh with beater patch Connector: Head (TRS Phones) Features:Bass drum riser, Wood hoop
Snare	EFD-S1250	Size: 12 x 5" Zone: Head / Rim / Side-Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim, Side-Rim (2x TRS Phones) Features: Birch shell, Colored hoop rubber, Side-Rim
Tom	EFD-T1070	Size: 10 x 7" Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber
Floor Tom	EFD-T1212	Size: 12 x 12" Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber
Hi-Hat	EFD-H14	General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used. EFNOTE 5 sound module does not support hi-hat cup zone. Size: 14" (Top/Bottom) Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) / Optical Connector: 6-pin Features: Multi-optical sensor, Tru-motion hi-hat, Weight simulation, Fine engraved surface
Crash	EFD-C16	Size: 16" Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface
Ride	EFD-C18	Size: 18" Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface
Splash	EFD-C08	Size: 8" Zone: Bow / Edge Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge (TRS Phones) Features: Weight simulation, Fine engraved surface

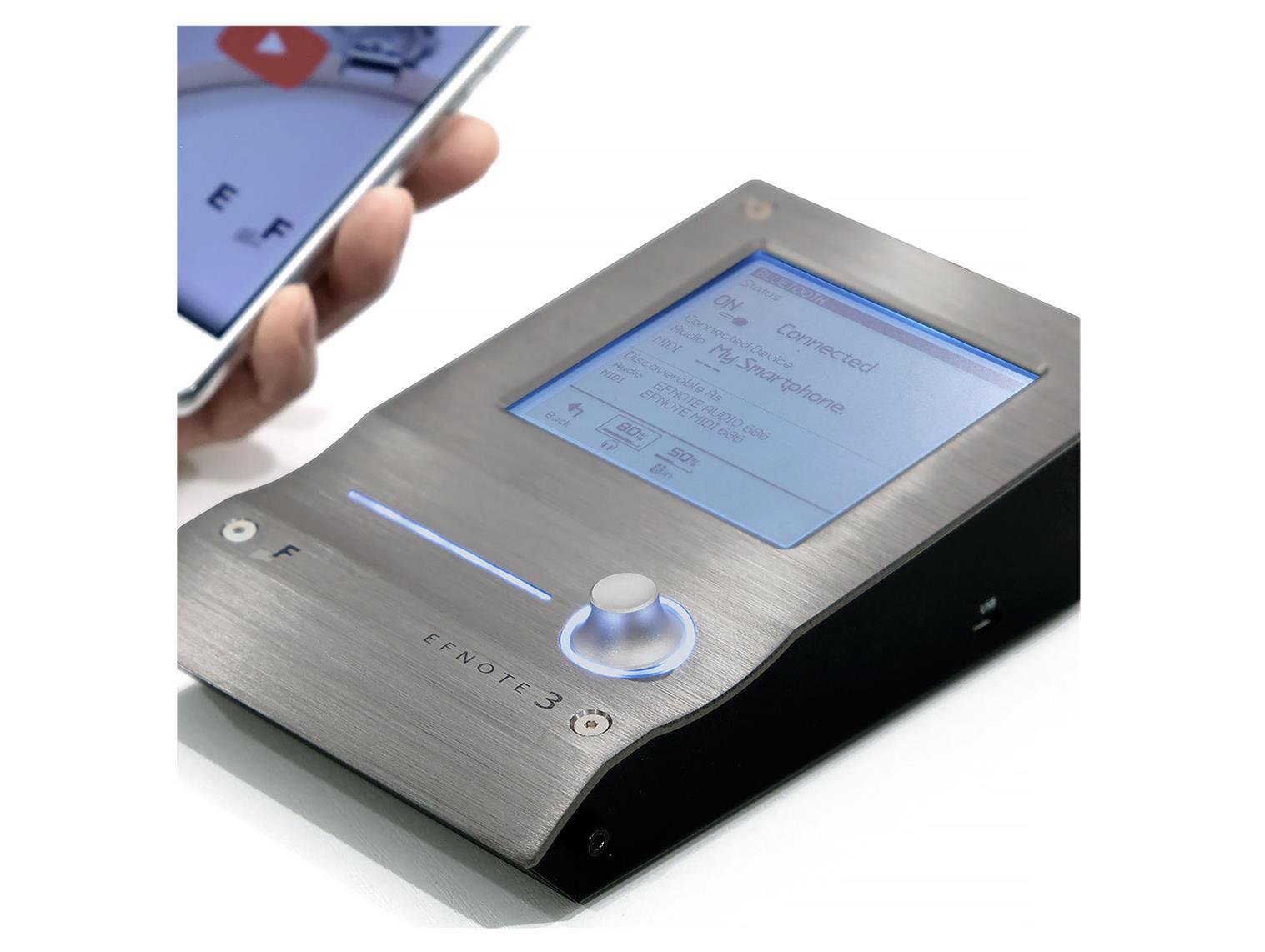

Sound Module: EFD-5

Trigger Interface	Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables. EFNOTE 5 uses the Crash 3 cable for the splash cymbal. 3-Zone: Snare, Crash 1/2*, Ride 2-Zone: Tom 1/2/3/4, HH, Crash 3 1-Zone: Kick
Audio / MIDI Interface	Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced) Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω) Audio Input: Stereo Mini-Phone (+2dBu Max) USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO) USB MIDI In/Out Bluetooth Audio Input Bluetooth MIDI (BLE) In/Out MIDI Out: 5-pin DIN
Drum Kits / Instruments	Preset Drum Kits: 17 (Editable) User Drum Kits: 83 Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters	Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Ambience Effect (8 Types) Pad Layer
Dimensions	172 (W) x 106 (D) x 47 (H) mm 700 g Excluding protrusions
Power	DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Tom Holder		1x Tom holder arm Geared L-rod tilter Knurled carbon steel rod L-rod diameter: φ11.5 mm (7/16") Tube diameter: φ22.2 mm (7/8") Height adjustment range: 700 -- 900 mm
Splash Cymbal Arm		1x Z-rod short 1x Z-rod long
Sound Module Arm		1x Sound module arm 1x Smartphone tray
Snare Drum Stand	EFD-SS5	For 12" to 14" diameter snare drums Geared basket tilter Double braced legs Tube diameter: φ19.1 mm (3/4") Height adjustment range: 500 -- 650 mm
Cymbal Stand	EFD-CS5	Boom cymbal arm Geared tilter Cable holder Middle tube diameter: φ19.1 mm (3/4") Boom length: 400 mm Height adjustment range: 800 -- 1,500 mm
